Ultrasonic Vibrating Screen
Ultrasonic Vibrating Screen
Ultrasonic Vibrating Screen
Ultrasonic Vibrating Screen
Ultrasonic Vibrating Screen
Ultrasonic Vibrating Screen
Ultrasonic Vibrating Screen
Ultrasonic Vibrating Screen
Ultrasonic Vibrating Screen
Ultrasonic Vibrating Screen

Ultrasonic Vibrating Screen

Model: 600-1800mm
Layer: 1-3 layers
Motor: Vertical vibration motor
Application Material: Fine powder, micron powder, ultra-fine powder
Customization: Acceptable
Machine Material: All stainless stee, all carbon steel, contacting parts stainless steel, other part carbon steel
Cleaning Device: Ultrasonic cleaning screen system
FOB Price: USD 1500-5500
Description
Parameters
Features
Application
Inquiry
Description

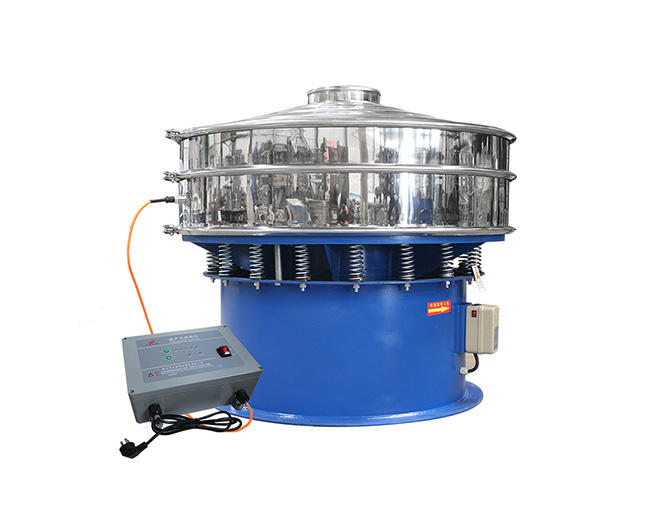

Ultrasonic vibrating screen have been adopted advanced techniques high sophisticated screening equipment. It consists of ultrasonic producer and vibrating screen. It's an important breakthrough in screening efficiency. This sieving machine adopts advanced intelligent vibrating ultrasonic controller and has solved many problems caused by single frequency.
The function principle of ultrasonic vibrating screen is adding an ultrasonic energy transform device on the screen surface of 3-D vibro separator and filter. This device can make the screen surface superpose ultrahigh frequency vibration energy, so that it can keep clear of the mesh and achieve the ideal screen situation. Ultrasonic vibrating screen is usually used in screening superfine powder which the ordinary vibrating screen can not solved.
Parameters
Model Power
(KW)
Sieving diameter(mm) Layer (s) Mesh Size Machine Material
DYC600 0.55 550 1-3 >100 mesh All stainless steel / contacting parts stainless steel, other parts carbon steel / all carbon steel
DYC800 0.75 750 1-3
DYC1000 1.1 950 1-3
DYC1200 1.5 1150 1-3
DYC1500 2.2 kw 1150 1-3
DYC1800 3 kw 1450 1-3
Note: For more information, please directly contact us or leave your message, our engineer will timely reply you.
Features
1. High efficiency, elegant design and durable, available for any powder, particles and viscous liquid.
2. Easy to operate, easy to change the screen, easy to clean.
3. Self-cleaning devices keep the screen clean during all operations.
4. Auto discharge gate available and facilitates impure and rough materials.
5. Various popular sizes (600/800/1000/1200/1500/1800) to fit any requirement, space-saving and high volume.
6. All material contact parts are stainless-steel 304.
7. We manufacture single deck up through four deck units.
8. Quickly change the screen in less than 5 minutes.
Application
Ultrasonic vibrating screen is applied to sieve any powder, granule, liquid screening and filtering of the industry. It can solve the difficult technology problems that other screening machines cannot solve. 1.Food industry: Sugar powder, salt, soy milk, fruit juice, starch, yeast powder, milk powder, grain particle and powder,etc. 2.Chemical industry: plastics, resins, fertilizers, paints, rubbers, fillers, greases, etc. 3.Pharmaceutical: Pharmaceutical granules, Pharmaceutical intermediates, raw material powders, Chinese medicine powders and slurries, etc. 4.Metallurgical industry: Iron oxide, zinc oxide, aluminum powder, lead powder, copper powder, alloy powder and other metal powders. 5.Ceramic industry: Glaze, quartz sand, kaolin, etc. 6.Other industries: Carbon black, co-solvent, activated carbon, pearl.
Ultrasonic Vibrating Screen
Ultrasonic Vibrating Screen
Ultrasonic Vibrating Screen
Ultrasonic Vibrating Screen
