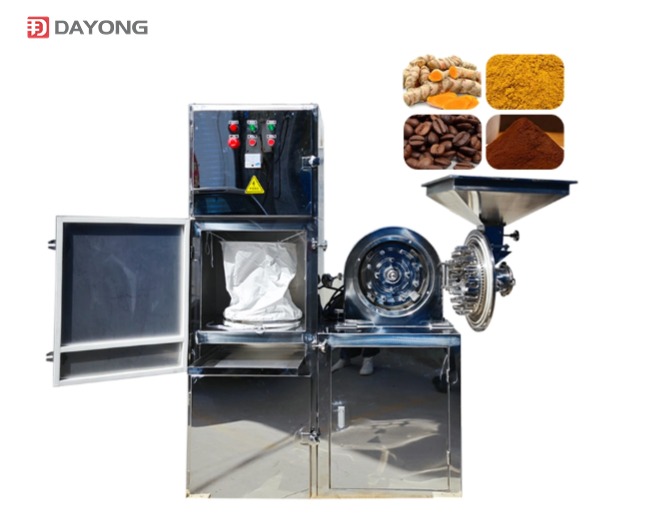

Dust removal universal crusher

Model:  20B/30B/40B/50B
Application industry:  Food industry (spices, sugar, pepper, dried chili, turmeric, etc.)
Handling capacity: 20-1000kg/h
Machine Material:  SS304/316, SUS304
Features:Smooth surface, wear-resistant and corrosion-resistant, durable, easy to operate, good crushing effect, high work efficiency, safe operation, clean and hygienic.
Description
Parameters
Features
Application
Inquiry
Description

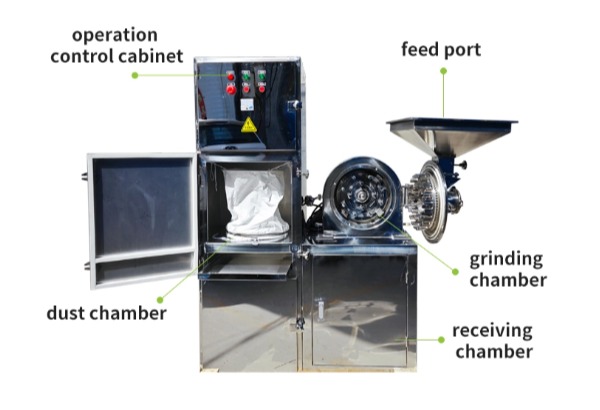

  The universal grinder is a high-speed running machine, and the powder collecting chamber adopts a fully enclosed silencer structure, which can effectively reduce the working noise. The machine is equipped with a cooling device to reduce the machine temperature and work more smoothly. This machine uses the high-speed relative movement between the movable toothed disc and the fixed toothed disc to crush the crushed material through the combined effects of the toothed disc impact, friction and the impact between the materials. The crushed material can be directly discharged from the main machine grinding chamber with the help of airflow, and the particle size is obtained by replacing the screen with different apertures. The machine has a simple and sturdy structure and is made of all stainless steel materials. The inner wall of the casing is machined to achieve a smooth surface, durable and easy to operate.
Parameters
Model 20B  30B  40B  50B
Handling capacity(kg/h) 20-150 50-300 40-400 80-500
Main speed(r/min) 4500 3800 3400 2900
Max feeding size(mm) <6 <10 <12 <12
Cruch size(Mesh) 12-120  12-120  12-120  12-120
Crusher Power(kw) 4 5.5 7.5 11


Note: For more information, please directly contact us or leave your message, our engineer will timely reply you.
Features
(1) Wide range of applications. The whole machine is made of stainless steel and can meet the standards of many industries. The crushing chamber can be equipped with a water-cooling jacket to meet the crushing requirements of most heat-sensitive materials.
(2) No pollution, low noise, separate aggregate chamber and dust collection chamber, so that dust can be fully collected, which can meet the user's requirements for cleanliness; the whole machine has good dynamic balance and greatly reduces noise.
(3) Blades can be installed in the crushing knife group (only for hammer type), which increases the air flow in the crushing chamber, which can ensure the output and reduce the temperature generated during crushing. It is more suitable for crushing some materials with poor fluidity and stickiness.
(4) Equipped with screens of various specifications to meet various fineness requirements.
(5) Easy to operate and maintain. Compact structure, easy to clean.
